20050LEDMGEM-BL

Home > Products > 20050LEDMGEM-BL

Collection: Edge EM

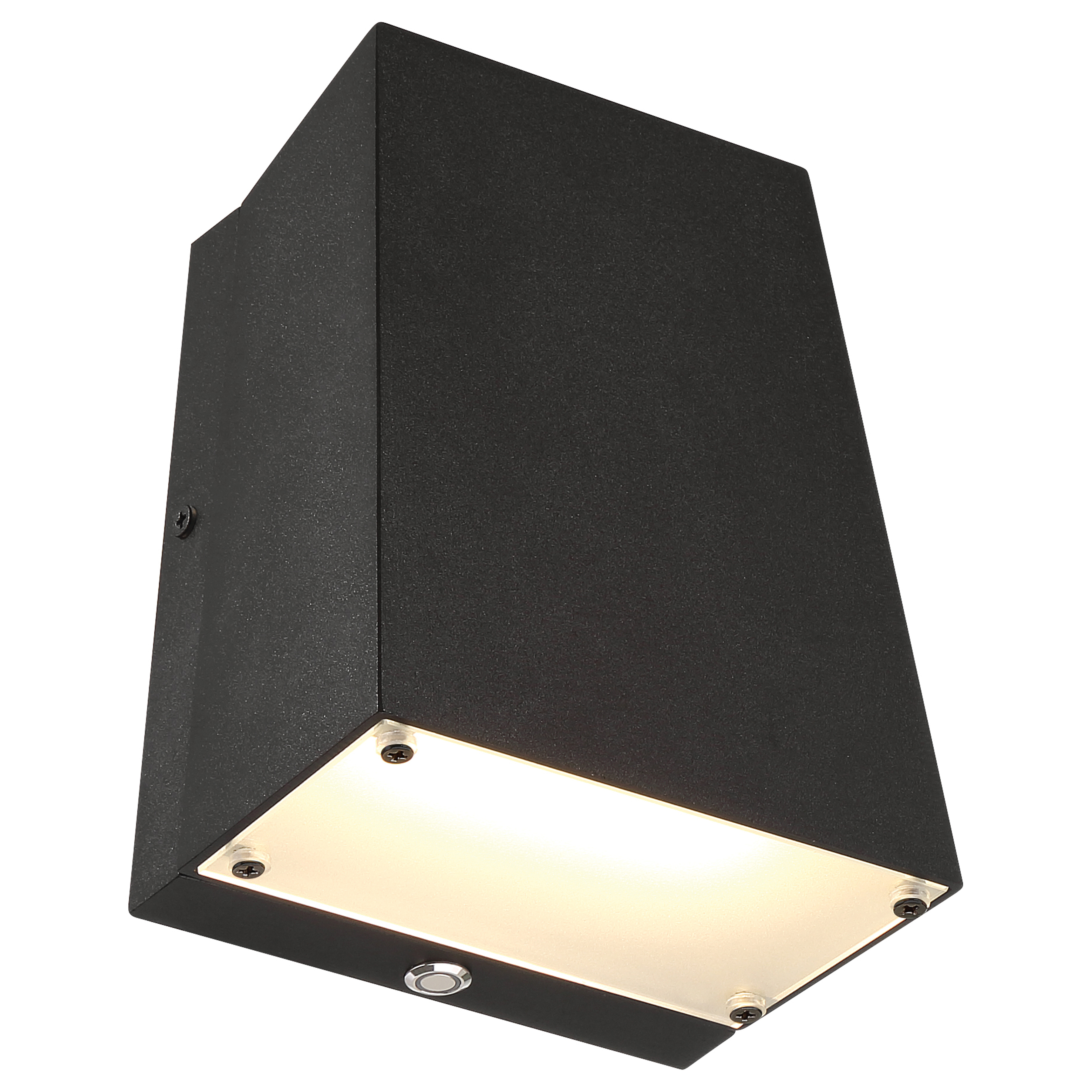

Description: Outdoor Emergency Battery Backup Outdoor LED Wall Mount

Fixture Finish: Black
Diffuser Finish: N/A

Product Resources

Where to Buy

Product Specifications

Lamping

Lamp Included: Yes
Lamping Base: SSL
Lamp Type: LED SSL
Lamp Wattage: 9 W
Total Wattage: 9 W
Nominal Lumens: 900 Lm
Delivered Lumens: 694 Lm
Color Temperature: 3000K
CRI: 90
Voltage: 120v
Dimmable: N/A
Dimmer: N/A
Recommended Dimmers: N/A

Measurements

Length: N/A
Width: 5.5 In
Diameter: N/A
Height: 7 In
Extension: 4 In
Max Overall Height: N/A

Backplate/Canopy

Length: 5.5 In
Width: .75 In
Diameter: N/A
Height: 6.5 In

Materials

Fixture: Metal
Shade: Glass

Certifications

Location Rating: Wet
Mounting Type: Wall
Certification: ETL (US/Canada) Listed

Compliance

ADA Compliant: Yes
Dark Sky: Yes
Emergency Lighting: Yes
JA8/Title 24 Listed: Yes, When Mounted Outdoor
Marine Grade Finish: Yes

Additional Notes

JA8 Compliant When Installed Outdoors. When in Emergency mode, press and hold the test button for 5 seconds to turn off. Flashing red light indicates fixture is charging.
