20029LEDDMG-SAT/ACR

Home > Products > 20029LEDDMG-SAT/ACR

20029LEDDMG-SAT/ACR

  • Collection: Newport

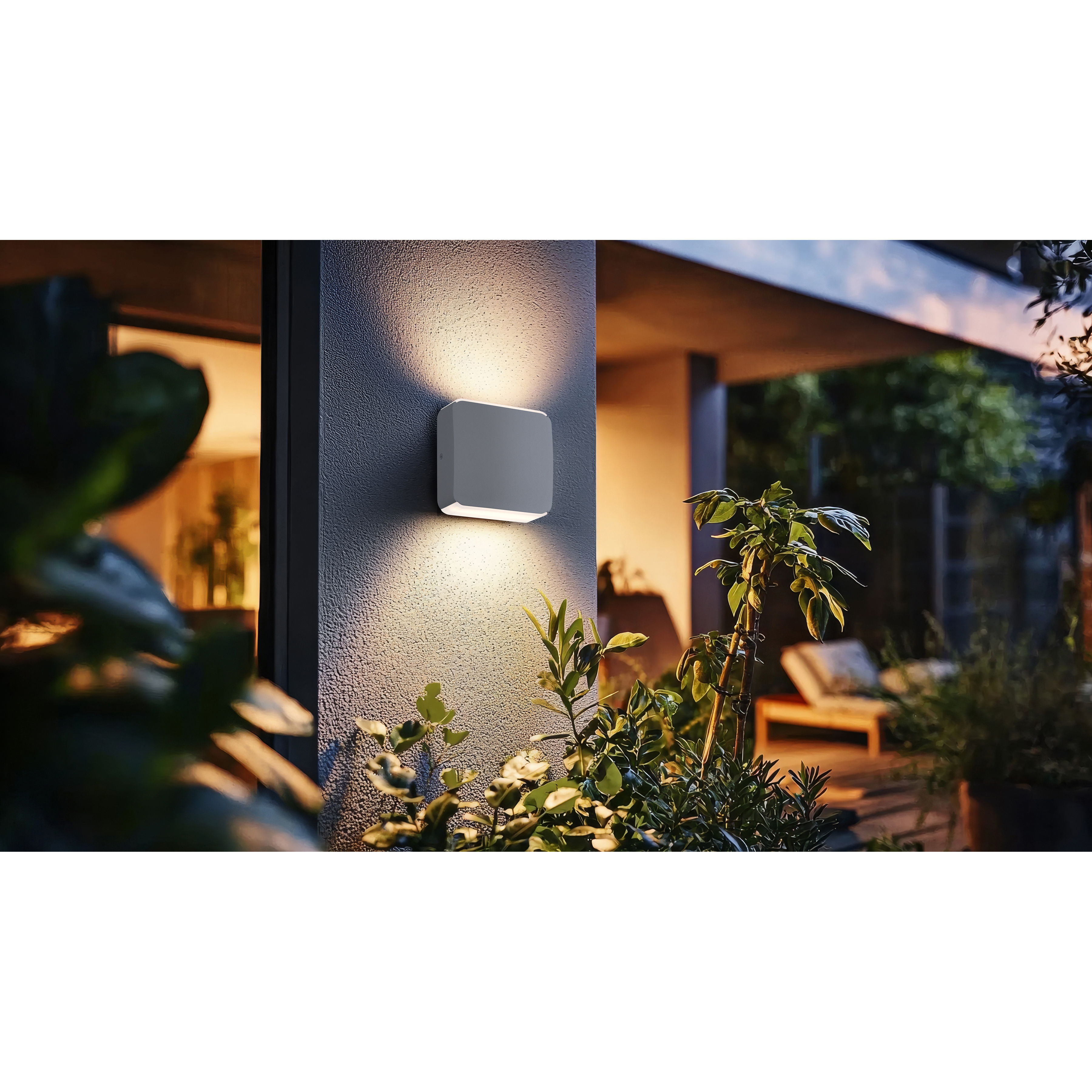

  • Description: Bi-Directional Outdoor LED Wall Mount
  • Fixture Finish: Satin
  • Diffuser Finish: Acrylic Lens
Where to Buy

Product Specifications

Lamping

Lamp Included: Yes
Lamping Base: SSL
Lamp Type: LED SSL
Lamp Wattage: 6 W
Total Wattage: 12 W
Nominal Lumens: 400 Lm
Delivered Lumens: 242 Lm
Color Temperature: 3000K
CRI: 90
Voltage: 120v
Dimmable: Yes
Dimmer: TRIAC
Recommended Dimmers: LUTRON Diva DVELV-300P, LUTRON Maestro CL MACL-153M, LUTRON Diva DVCL-153P, LUTRON Diva DVLV-600P, LEVITON Trimatron 6684, LEVITON Sureslide 6633-P, LUTRON Toggler TG-600P

Measurements

Length: N/A
Width: 5.5 In
Diameter: N/A
Height: 5.5 In
Extension: 1.75 In
Max Overall Height: N/A

Backplate/Canopy

Length: N/A
Width: N/A
Diameter: N/A
Height: N/A

Materials

Fixture: N/A
Shade: N/A

Certifications

Location Rating: Wet
Mounting Type: Wall
Certification: ETL (US/Canada) Listed

Compliance

ADA Compliant: Yes
Dark Sky: No
Emergency Lighting: No
JA8/Title 24 Listed: Yes, When Mounted Outdoor
Marine Grade Finish: No

Additional Notes

  • JA8 compliant when installed outdoors.
